How to Use Identifiers in an App‑to‑App Call

Info:Keep in mind that:

Different form identifiers apply at different stages in a workflow. When you build an App‑to‑App request, you must use valid combinations of identifier and location (Forms, Inbox, Drafts, or Search).
On the Enterprise tier, a dispatched record might also be located in the Group Inbox The Group Inbox on your mobile device is a list of records that were sent to a group or FormSpace. If you're available, you can claim a record to work on from the Group Inbox..
Resources are always located in the resourcelibrary, regardless of the workflow.

This topic describes the form identifiers that you can use in an App‑to‑App call. It also explains how to find a resource identifier.

Available on all tiers:

Essentials

Advanced

Enterprise

Form identifiers

As a form progresses through a workflow, it moves from one location (“list” or “tab”) on the TrueContext Mobile App to another. For example, a user can open a form from the Forms list, add information, and then save it to Drafts.

The following table describes the location-identifier combinations at various stages in a form’s workflow.

Form stage	Location on the TrueContext Mobile App	Identifiers to use in an App‑to‑App request	Description
Saved and deployed by a form designer	Forms	formID	Identifies the form. In an App‑to‑App request, this is the most recently deployed version of the form.
Saved and deployed by a form designer	Forms	formIterationID	Identifies the form and version of the form.
Dispatched	Inbox	dataRecordID	Identifies the form based on the ID assigned by the TrueContext server.
Dispatched, opened, and saved
Sent for edit
Sent for edit, opened, and saved
Opened for edit from the Sent box, and saved
Opened from the Forms box and saved as a draft	Drafts	clientDataRecordID	Identifies the saved form by the ID assigned by the TrueContext Mobile App. Tip:The only way to get the clientDataRecordID is to send an App‑to‑App request that includes an `x-success` callback parameter (supported on the Advanced and Enterprise tiers).
Sent (complete)	Search	N/A	The search action searches the text of the form submission name only. Note:“Incomplete” applies only to teams on the Enterprise tier with TrueContext Teamwork TrueContext Teamwork is an Enterprise tier feature that enables mobile users to transfer incomplete forms for other users to complete as part of a multi-user workflow. This can be useful for jobs that require someone else's expertise or that span multiple shifts.-enabled forms.
Sent (incomplete)	Search	N/A

Resource identifiers

Info:The Resource Library must be set up for your team, and individual resources must be set to Visible in Resource Library. The topic Set Up the Resource Library describes the process in more detail.

You can find a resource identifier in the TrueContext Web Portal The TrueContext Web Portal is a web application used to manage security settings, forms, FormSpaces, other users, Data Sources, and Data Destinations..

Go to Forms & Integrations Integration refers to secure communication and data sharing between TrueContext and a third-party system, such as Salesforce or ServiceMax. Connections, Data Sources, Data Destinations, and App-to-App calls and callbacks can be used as part of an integration solution. > Resources.
Select the resource that you want to identify in your App‑to‑App call.

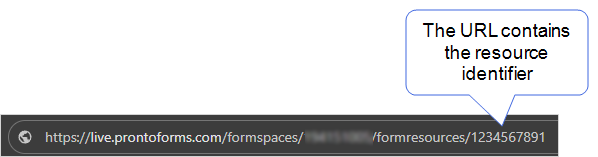

Result: The browser URL includes the resource identifier, as shown in the following example.
Copy the resource identifier to use with the open action. The following example shows the resource identifier syntax in bold.
```
truecontext://x-callback-url/open?type=resourcelibrary&resourceID=1234567891
```
